TEXACO Gas Station, Arnheim
TEXACO Gas Station, Arnheim

General

Categories
Rapid concrete systems
Project
TEXACO Gas Station
Location
Arnheim
Country
Netherlands
Construction year
2018
Product

Rapid Set fast-setting concrete (volumetric)

Type
Renovation
Area
approx. 375 m² (75 m³ fast concrete) m2
Builder
TEXACO Group

Project Description

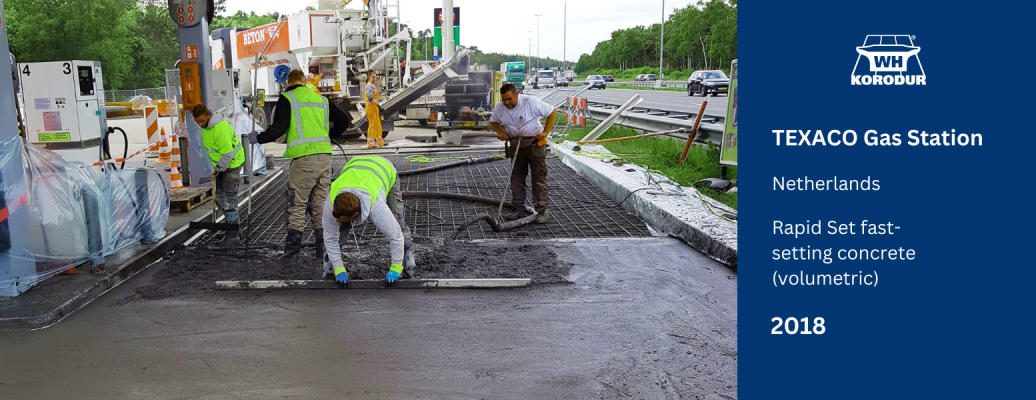

At a TEXACO gas station on the A50 motorway near Arnheim in the Netherlands, pumping areas were due for repair. Concrete areas at gas stations where petrol is stored, pumped, handled, must fill stipulated liquid density requirements. They are subject to the directive “Determination of penetration of liquids into concrete by the capillary absorption test”.
The Rapid Set fast-setting concrete achieved excellent test results (being exposed for 144 hours to the n-Heptan medium) and is fully approved for the use at petrol stations. The Rapid Set fast-setting concrete provides both high liquid density and high early strength. The tests of compressive strength showed results of 24,8 MPa after 1 hour and 32,5 MPa after 2 hours. Due to the fast strength gain, the new pumping areas could be released for operation within shortest time.

The pumping areas were completely refurbished with Rapid Set fast-setting concrete, area sizes 5 x 15 x 0.2 m.
The required concrete quantity of 15 m³ per area was mixed on site by two fully loaded volumetric mixing trucks and installed by concrete pump. Surface treatment with helicopter and disk trowel, curing with water and foil.
With Rapid Set fast-setting concrete in volumetric processing the repair of 5 pumping areas could be finished within 5 weeks.
